Fast Speed Symbol USB Cable Min 5 M Ohms Insulation Resistance With Chip

Quick shipping, and genuine concern for after-purchase satisfaction! Cable is top quality and performs as hoped

—— Stein Helge Riise

I would recommend this supplier, very reasonable price and fast shipping. They were able to meet our requirements perfectly. Thank you for the good service.

—— James Archer

Very good and cooperative seller.They also helped in arranging non standard product requirement. Fully satisfied with the product and services provided. Totally recommend them.

—— Mudit Sharma

Long corperation ,high quality products and grate service team.

—— David Wood

I'm Online Chat Now

Fast Speed Symbol USB Cable Min 5 M Ohms Insulation Resistance With Chip

China Fast Speed Symbol USB Cable Min 5 M Ohms Insulation Resistance With Chip supplier
Fast Speed Symbol USB Cable Min 5 M Ohms Insulation Resistance With Chip supplier Fast Speed Symbol USB Cable Min 5 M Ohms Insulation Resistance With Chip supplier Fast Speed Symbol USB Cable Min 5 M Ohms Insulation Resistance With Chip supplier Fast Speed Symbol USB Cable Min 5 M Ohms Insulation Resistance With Chip supplier

Large Image :  Fast Speed Symbol USB Cable Min 5 M Ohms Insulation Resistance With Chip

Product Details:

Place of Origin: China
Brand Name: KBTech
Certification: ROHS ,CE,UL
Model Number: PS2 TO USB with chip

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: 1.5-2USD/PCS
Packaging Details: 1. one piece in a poly bag;2. 200-250pcs in a export carton
Delivery Time: 5-10days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5000pcs per week
Contact Now
Detailed Product Description
Length: 2M Or Custom Color: Gray
Use: Symbol Scanner Wire Guage: 26AWG ,Al Foil
Conductor: Copper Jacket: PVC Or PU
Connector One End: USB A Male 4pin With Chip Connector Other End: RJ48 10P10C ,Gold Plated ,50μ
Accept: OEM ,ODM Warranty: 12 Months

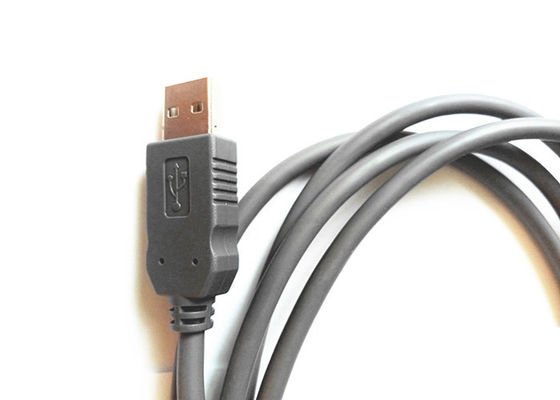

2M Symbol KB Wedge Scanner PS2 port change to USB port Conventor scanner cable with chip



1. Description:


      Most of Motoralo symbol scanner support four interface :TTL,RS232,KBW,USB.Symbol barcode scanner usb cable can support most mode scanner ,also with RS232 ,KBW interface.But when you use port cable support other interface scanner ,you must be set up scanner before scanning. If you have any issue,you also can contact me .Morever ,some old special KB Wedge PS2 Interface scanner can not use this type common symbol usb cable .it must be use the cable with clip for transfering.



2. Compatibility:

LS1902T,LS1902,LS1908  (Any other model ,please contact me to confirm)





Product Type: Symbol usb cable with chip
Product Name: 2M Symbol KB Wedge Scanner PS2 port change to USB port Conventor scanner cable with chip
Connector on First End:

1 x 4-pin Type A USB with Chip
USB Version 2.0 Compliant,High speed ,480 Mbps

Connector on othe End: RJ48 10P10C ,50μ,Gold plated
Cable Length: 2M , Other length 2m ,5m and coiled cable are all avaliable
Conductor: Copper
Color:

Gray

 Original P/N  No
Warranty: 12 Months



3. Electrical Test
1. Hi-Pot Test: DC300V.
2. Insulation Resistance: 5M Ohms (Min).
3. Contactor Resistance: 1 Ohms (Max).
4. 100% Open Short and Miss Wire Test.


4. Related symbol barcode scanner cable

Symbol USB Cable Straight 2M Symbol CBA-U01-S07ZAR Cable
3M Symbol CBA-U25-S09ZAR Cable
5M Symbol CBA-U10-S15ZAR Cable
Coiled Sprial 9ft 3M Symbol CBA-U12-C09ZAR Cable
15ft 5M Symbol CBA-U09-C15ZAR Cable
Symbol RS232 Cable Straight 7ft 2M Symbol CBA-R01-S07PAR Cable
Coiled Sprial 9ft Symbol CBA-R02-C09PAR Cable
12ft Symbol CBA-R03-C12PAR Cable
20ft Symbol CBA-R06-C20PAR Cable
Symbol PS2 Cable Straight 7ft 2M Symbol CBA-K01-S07PARCable
Coiled Sprial 9ft 2.8M Symbol CBA-K02-C09PAR Cable

Symbol USB Cable
         with Chip

Straight Symbol RS232 TO USB Cable with Chip

Fast Speed Symbol USB Cable Min 5 M Ohms Insulation Resistance With Chip
