Home ProductsUSB Power Cable

Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging

Quick shipping, and genuine concern for after-purchase satisfaction! Cable is top quality and performs as hoped

—— Stein Helge Riise

I would recommend this supplier, very reasonable price and fast shipping. They were able to meet our requirements perfectly. Thank you for the good service.

—— James Archer

Very good and cooperative seller.They also helped in arranging non standard product requirement. Fully satisfied with the product and services provided. Totally recommend them.

—— Mudit Sharma

Long corperation ,high quality products and grate service team.

—— David Wood

I'm Online Chat Now

Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging

China Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging supplier
Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging supplier Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging supplier Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging supplier

Large Image :  Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging

Product Details:

Place of Origin: China
Brand Name: KBTech
Certification: ROHS ,CE,UL
Model Number: FRU40M5606

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Ask for lasted price
Packaging Details: 1.one pieces in a poly bay ,2. 50-100pcs in a export cartons
Delivery Time: 7-15days
Payment Terms: T/T, Western Union,Paypal, MoneyGram
Supply Ability: 5000pcs per week
Contact Now
Detailed Product Description

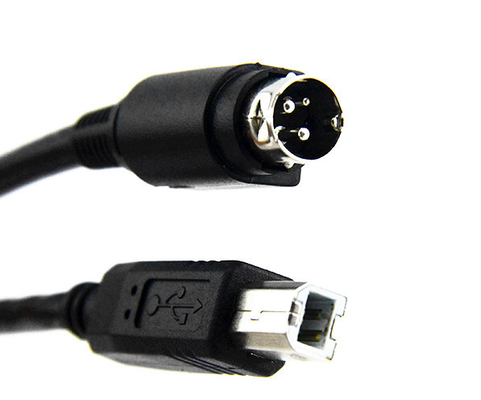

Length: 2m Color: Black
Connector A: 24V Poweredusb Core Wire: Copper
Wire Guage: 22AWG ,Al Foil ,Braid OD: 5.0MM
Application: Keyboards ,LCD Connector B: Usb B Male
Connector C: 3pin Din Male Warranty: 1 Year

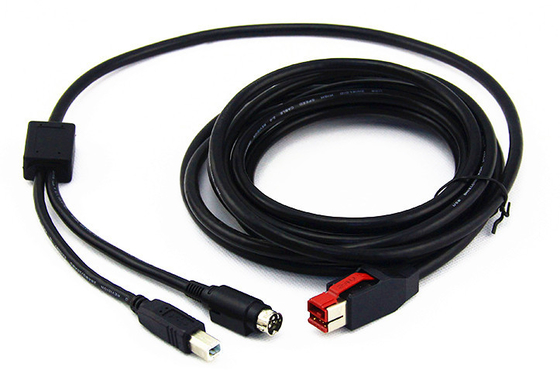

3.8M 12V to 1 × 4pin FRU40M5606 Long LCD Powered USB Cable

Work with Keyboards and LCD



Descriptions:

This 24v to Hosiden + USB B Powered USB cable is backed by lifetime warranty to ensure long-lasting durability and optimum performance.
Power your peripheral and provide USB connectivity with a single cable. Compatible with USB 1.1/2.0 standards and Powered USB peripheral devices Eliminates the use of a power adapter Reduces clutter and frees up space Plug and Play Technical Specifications
Warranty Lifetime

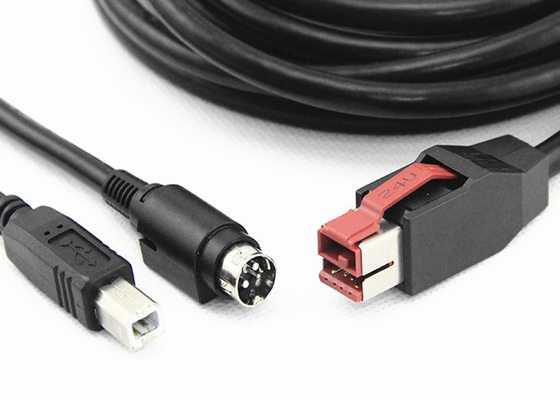

Connector A 1 - PoweredUSB 24V (8 pin; Host Side) Male

Connector B 1 - Power DIN (3 pin; Hosiden) Male

Connector B 1 - USB B (4 pin) Male Cable Length

Product Length 6 ft [2 m]

Application:

Epson Connect-It® Module
C32C823991 UB-U05         On Board USB Interface (TransScan)
C32C823893 UB-U09         USB Interface with DB-9 Serial
C32C824091 UB-U19         On Board USB Interface with DB-9 Serial (TransScan)
C32C824111 UB-U01-III      USB Interface with 2 port HUB, DM Port
C32C824121 UB-U02-III      USB Interface with DM port
C32C824131 UB-U03-II       USB Interface (no DM, no Hub)





Feature of Powered usb cable



1. Powered usb cable provides a single cable connection that supplies both the standard USB communication

signals and two additional wire pairs for extra power.

2.The design of Powered USB and it’s connectors allow for hot-plugging.

3.This combined with Plug-and-Play operating systems allows Powered usb cable to be easily maintained and supported in the retail environment.

4. One of the limitations of standard USB is the amount of +5V current available to supply attached peripherals. Normally, 500mA is available at each host port and each powered external hub port.

5. his amount of current is sufficient for most PC type peripherals like mice and keyboards.

6. When the power requirements exceed the 500mA limitation, external peripherals require the use of an external power supply

(brick) to supply the necessary power requirements.

7. This limitation takes away from the true "Plug-and-Play" idea conceived for USB peripherals



Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging
Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging

Keyboards USB Y Cable / Long USB Cable Connectors Design Allow For Hot Plugging
