RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player

Quick shipping, and genuine concern for after-purchase satisfaction! Cable is top quality and performs as hoped

—— Stein Helge Riise

I would recommend this supplier, very reasonable price and fast shipping. They were able to meet our requirements perfectly. Thank you for the good service.

—— James Archer

Very good and cooperative seller.They also helped in arranging non standard product requirement. Fully satisfied with the product and services provided. Totally recommend them.

—— Mudit Sharma

Long corperation ,high quality products and grate service team.

—— David Wood

I'm Online Chat Now

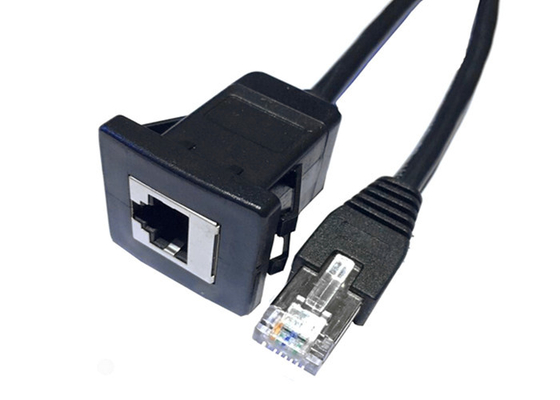

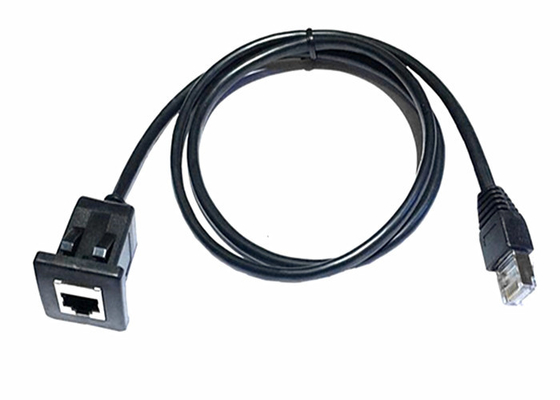

RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player

China RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player supplier
RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player supplier RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player supplier RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player supplier RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player supplier

Large Image :  RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player

Product Details:

Place of Origin: China
Brand Name: KBTech
Certification: ROHS ,CE,UL
Model Number: Faceplate wall plate

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get lastest price
Packaging Details: 1. one piece in a poly bag;2. 200-250pcs in a export carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5000pcs per week
Contact Now
Detailed Product Description
Length: 1m 2m Or Custom Cable Color: Black Color
Core Conductor: BARE Copper Wire Guage: 24AWG ,STP
Shape: ROUND Cat5 Cat5e Cable Connector: RJ45 8P8C ,Gold Plated
Jacket: PVC Use: Computer ,TV ,Router,Switch,Faceplate
High Light:

network jumper cable

,

telephone extension cord

         Faceplate Module Cat5 CAT5e SuperSpeed Panel Mount rj45 Wall plate

Network data cable



Description:


Product Name :  Faceplate Mount pannel RJ45 Extension cable

Color: black
Cable length: 2M ,1M or custom
Connector: RJ45 male 10P10C ,Gold plated

Conductor :BC

Wire guage: 24AWG ,STP
Material: 8 core 28AWG copper wire core plus aluminum foil shield, environmental protection, iron crystal head connector;



You can dill a hole on the wall ,desk or other device,Then the cable can fix on the pannel

Flexible ,Easy to install

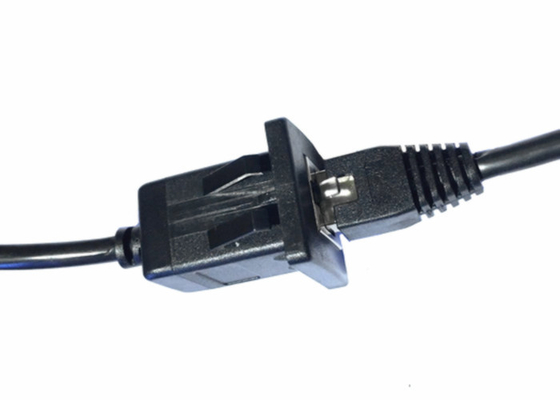

Features a bulkhead mountable female connector

Easily access a RJ45 connection on any machine port or faceplate

Shielded with molded connectors

Excellent for extending your LAN connection to your HDTV, Blu Ray Player, Home Theater, XBox 360, PS3, etc. Used for network adapters, hubs, switches, routers, DSL/Cable modems, patch panels and other twisted-pair applications.





Feature

Product Name Faceplate Module Cat5 CAT5e SuperSpeed Panel Mount rj45 Wall plate
Model Item Faceplate mount pannel rj45 cable
Place of Origin Shenzhen ,China
MOQ 500 Piece
Category Cat5e / Cat5
Color White/Black/Grey/Orange/Green/Blue/Yellow/Red
OEM & ODM Support
Specification



-Lead-free & RoHS compliant.
-Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2nd edition and CENELEC EN 50173-1 standard.
-Comply with requirements of ANSI/TIA–1096-A (FCC Part 68) and Level A reliability requirements of IEC 60603-7 for RJ45 8-way connector.



Electrical



-Voltage proof: 1000V DC or AC peak, contact-to-contact.
-Current-carrying capacity: 0.75Amps minimum
-Contact resistance: 20mΩ maximum
-Insulation resistance: 500MΩ minimum at 100V DC
-Input to output resistance: 200mΩ maximum
-DC resistance: 0.2ohm maximum



Mechanical



-Mechanical operation: 750 cycles minimum for insertion / withdrawal with modular jack
-Effectiveness of connector coupling devices: 50N (11lbf) for 60s ± 5s.
-Insertion and withdrawal forces: 30N maximum



Environmental

-Temperature: -10℃~ 60℃
-Humidity: 10% ~ 90%RH



Cable Advantage

1. This cable connects all the hardware destinations on a Local Area Network (LAN)

2. Ideal for use with 10 Base-T, 100 Base-T and 1000 Base-T networks. This Fast Cat(Tm) 6e patch cable has two RJ-45 male to male connectors and features 50-micron gold plated connectors which ensure a clean and clear transmission.

3. Ul CE Rohs Certificates to guarantee the quality

4. Strict QC Procedure to make Production Perfect

5, Eight Years Factory Power Cord Expereience with the Competitive Price

6. OEM Available

RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray PlayerRJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player

RJ45 CAT5 CAT5e Network Data Cable Easy Install Suitable For Blu Ray Player
