Product Details:
Payment & Shipping Terms:
|
Length: | 15Cm Or Custom | Color: | GRAY Or Custom |
---|---|---|---|
Counductor: | Copper | Wire Guage: | 28AWG FLAT RIBBION CABLE |
Jacket: | PVC | Connector One End: | DB25 Female |
Connector Other End: | IDC 26PIN Female | Accept: | OEM ,ODM |
High Light: | rs232 serial cable,cisco console cable |
1.8M D-SUB 25PIN Female to CN36 DB36 Male parallel printer cable
Description:

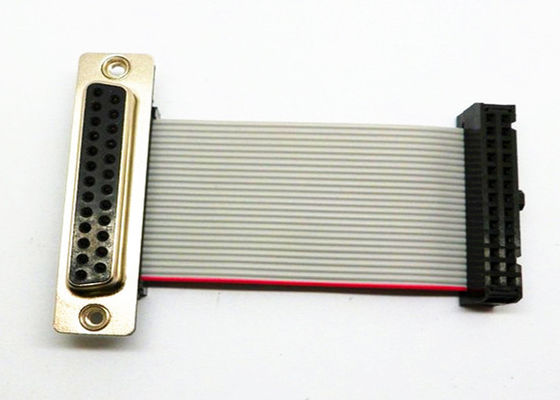

Product Type: IDC 26Pin to DB25 Female cable
Product Name: Flat Ribbon IDC 26Pin to DB25 Female Connector parallel printer cable
Connector on First End: D-SUB 25PIN female
Connector other End: IDC 26PIN Female
Cable Length: 20CM or custom
Color: Black,Beige
Gender: M/M
Molding Type: PVC mouled or ABS Assembly
Green Compliant: Yes
Compatibility: POS System ,Printer, PDA and Mondem
Feature
Wire Molde
|
UL2678 , UL2651, UL2651
|
||
Cable Pitch Range
|
0.4mm,0.635mm, 1.0mm, 1.27mm
|
||
Connector pitch range
|
0.8mm,1.27mm, 2.0mm, 2.54mm
|
||
Conductor range
|
24-30AWG
|
||
Connector Pins
|
6~40P,6~50P, 6~64P
|
||
Cable Color
|
Grey with red edge or Grey with Blue edge or black with white edge
|
||
Connector color
|
Usually black, grey & red
|
||
Cable length
|
10cm, 15cm,30cm or cusomized
|
||
Applications
|
Computer/Desktop data transfer, Power transfer, Electronics, Communication data transfer
|
||
Certified
|
Hook Up wire, UL, VDE, CSA
|
||
Material
|
SORY standard PBT
|
||
Terminals
|
bronze and phosphor bronze
|
||
Connector
|
Gold-plated /nickel-plated
|
||
Rated Current
|
1Amp
|
||
maximum voltage
|
AC 500V / 1Minute
|
||
Insulation resistance
|
1000mΩ
|
||
Contact resistance
|
15mΩ
|
||
Operating Temperature
|
-40 ° C ~ + 105 ° C
|
