CBA U09 C15ZAR Symbol Barcode Scanner USB Cable 5M Coiled Spiral High Speed

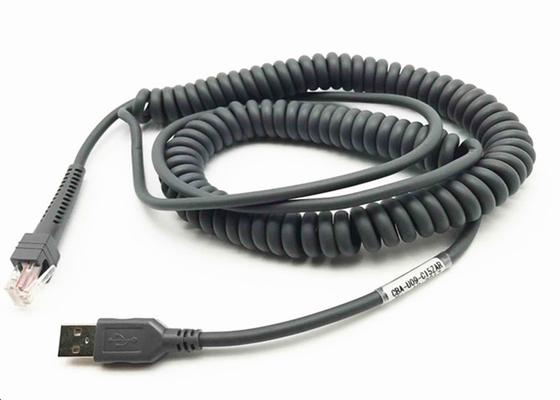

Large Image : CBA U09 C15ZAR Symbol Barcode Scanner USB Cable 5M Coiled Spiral High Speed

Product Details:

Place of Origin:	China
Brand Name:	KBTech
Certification:	ROHS ,CE,UL
Model Number:	CBA-U09-C10ZAR

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	3.5-4USD/PCS
Packaging Details:	1. one piece in a poly bag;2. 200-250pcs in a export carton
Delivery Time:	5-10days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	5000pcs per week

Contact Now

Detailed Product Description

Length:	5M Coiled Or Custom	Color:	Gray
Use:	Symbol Scanner	Wire Guage:	26AWG ,Al Foil
Conductor:	Copper	Jacket:	PVC Or PU
Connector One End:	USB A Male 4pin	Connector Other End:	RJ50 10P10C ,Gold Plated ,50μ
Accept:	OEM ,ODM	Warranty:	12 Months
High Light:	computer usb cable , digital computer cable

5M Coiled Sparil CBA-U09-C15ZAR Symbol Barcode scanner USB Cable

1.Description:

High quality as original cable

100% brand new and high quality

USB Version 2.0 Compliant,High speed ,480 Mbps
USB Cable fit for Motorola Symbol Barcode Scanner

5M Coiled CBA-U09-C15ZAR Symbol Barcode scanner USB Cable
Compatible for PN :	CBA-U09-C15ZAR or SYM-CBAU09C15ZAR
Cable Connector:	1 x 4-pin Type A USB 1 x RJ48 10P10C ,50μ,Gold plated
Cable Conducter:	Copper
Cable Insulations:	PVC
Cable Color:	Gray
Cable Length:	Total length 5M (Coiled Cable)
Used for :	LS1203,LS2208/AP,LS4008I,LS4208,LS3008, LS3408,LS4278,LS3478,LS3578,LS9208i,LS9203i, LS7708,LS7808,DS3400,DS3408,DS3508,DS3478, DS3578, DS6878,DS9808,DS6707,DS6700, DS6708,DS6608,DS4208,DS6878,DS9208, STB3578,LS9203 LS4007i M2007-I200 M2007-I290
Note:	For LS4000i series, Only LS4007i can allpy for USB cable For M2007 series, only two models can use USB cable. M2007-i200 , M2007-i290 For LS6000 series,Only LS6007i can use USB cable. LS6004, LS6005 can not use USB cable.

If you have any isuue ,just contact me. Our engineer and me wil help you solve it.Thanks

Electrical Test
1. Hi-Pot Test: DC300V.
2. Insulation Resistance: 5M Ohms (Min).
3. Contactor Resistance: 1 Ohms (Max).
4. 100% Open Short and Miss Wire Test.

4.Related symbol barcode scanner cable

--- Other symbol usb cable
CBA U09 C15ZAR Symbol Barcode Scanner USB Cable 5M Coiled Spiral High Speed

CBA-U01-S07ZAR CBA-U25-S09ZAR CBA-U12-C09ZAR

---other PS2,RS232 Port Symbol scanner cable

Symbol Cable	S / C	Length	Original P/N	Compatibility
Symbol RS232 Cable	*Straight*	7ft 2M	CBA-R01-S07PAR	LS1203,LS2208/AP,LS4008I, LS4208 LS3008,LS3408, LS4278,LS3478,LS3578 LS9208i,LS9203i,LS7708, LS7808,DS3400,DS3408, DS3508,DS3478,DS3578, DS6878,DS9808,DS6707, DS6700,DS6708,DS6608, DS4208,DS6878,DS9208, STB3578,LI4278
	*Coiled Sprial*	9ft	CBA-R02-C09PAR
		12ft	CBA-R03-C12PAR
		20ft	CBA-R06-C20PAR
*Symbol PS2 Cable*	*Straight*	7ft 2M	CBA-K01-S07PAR
*Symbol PS2 Cable*	*Coiled Sprial*	9ft 2.8M	CBA-K02-C09PAR
Symbol USB Cable with Chip	*Straight*	2M Symbol KB TO USB Cable with Chip		LS1902T LS1902 LS1908
Symbol USB Cable with Chip	*Straight*	Symbol RS232 TO USB Cable with Chip		LS5700 LS5800 LS7808 LS7708
