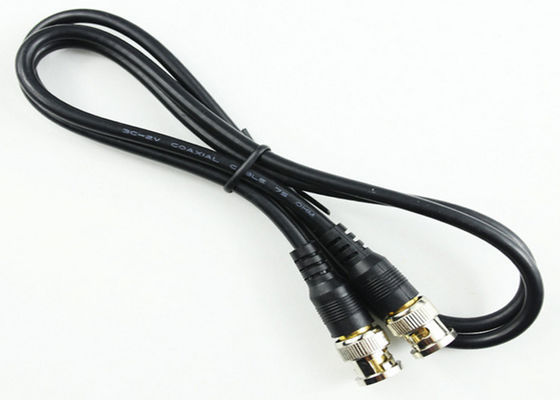

Electronic Test Equipment TV Coaxial Cable BNC Male Connector Foil And Braid Shield

Large Image : Electronic Test Equipment TV Coaxial Cable BNC Male Connector Foil And Braid Shield

Product Details:

Place of Origin:	China
Brand Name:	KBTech
Certification:	ROHS ,CE,UL
Model Number:	BNC Coaxial cable

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	1.2-1.8USD/PCS
Packaging Details:	1. one piece in a poly bag;2. 200-250pcs in a export carton
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union,Paypal, MoneyGram
Supply Ability:	5000pcs per week

Contact Now

Detailed Product Description

Length:	1m Or Custom	Color:	Black
Conductor:	Copper	Cable:	RG59 ,3C-2V
Connector:	BNC Male Connector	Use:	CCTV Camera
Accept:	OEM ,ODM	Warranty:	12 Months
High Light:	rf coaxial cable , sma antenna cable

HD Security Special BNC to BNC male to male CCTV Camera coaxial cable

Description

Model Number: RG59 BNC male to male cable
RF Cable Assembly/Jumper/Interface Cable Specification
Connector 1 BNC male straight
Connector 2 BNC female straight bulkhead
Cable type RG59
Cable length 100cm
Other Cable length 200mm, 500mm, 100cm, 250cm, 1000cm or others
Other connectors BNC, SMB, FME, MCX, MMCX, CRC9, TS9, TNC, etc
Other Cable type RG316, RG174, RG178, LMR100, LMR200, RG58, etc

Feature

ITEM NO	HD Security Special BNC to BNC male to male CCTV Camera RG59 coaxial cable
Connector	BNC
Impedance	75 ±3 ohms
Conductor	0.643mm copper
Dielectric	4.7mm HDPE inter skin, foamed polyethylene and HDPE outer skin
Shield	foil+braid
Outer conductor	6 0.12mm AL+800.12mm CCA
Jacket	6.9mm PVC Jacket
Using	VCRs, TVs, cable, FM antennae, etc

F Connector Application

Antennas	Broadcast	Radios
Electronic test equipment	Serial digital and analog interface	terminals
airport	bank buildings	highways
prison	electricity	Telecommunications
railway stations	schools	factories
