Honeywell Metrologic Scanner KB Wedge to USB Computer Data Cable With chip Custom Length Black Color
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Length: | 2M Or Custom | Color: | Black |
|---|---|---|---|
| Use: | Honeywell Metrologic Scanner | Wire Guage: | 26AWG ,Al Foil |
| Conductor: | Copper | Jacket: | PVC Or PU |
| Connector One End: | USB A Male 4pin With Chip | Connector Other End: | RJ48 10P10C ,Gold Plated ,50μ |
| Warranty: | 12 Months | ||
| High Light: | computer connection cables,computer usb cable |
||

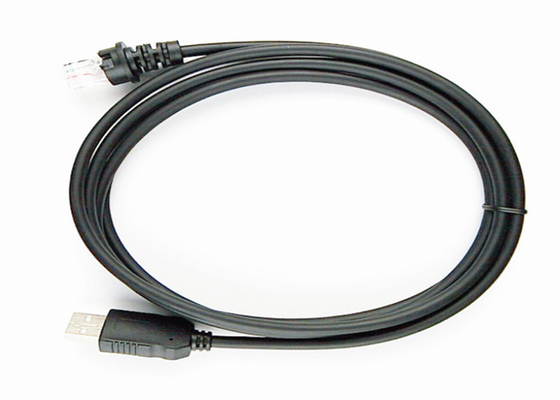

2M Honeywell Metrologic KB Wedge Scanner PS2 to USB port scanner computer data cable with chip
1. Description:
Most of Honeywell scanner support four interface :TTL,RS232,KBW,

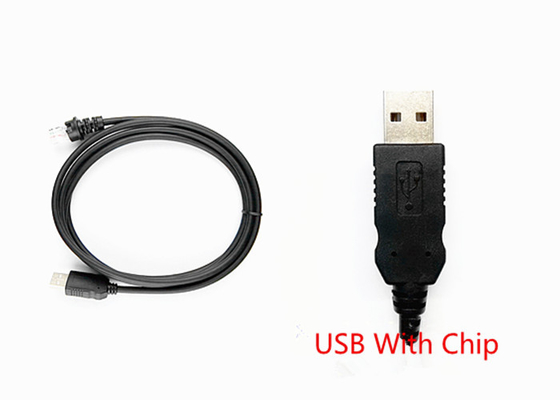

Due to USB is popular and easy to plug and pull , So we custom the cable with Chip. KB Wedge Scanner also can use usb port ,but it must be with chip in it .When you purchase ,please let me know.
2. Compatibility:
MS7120 MS1690 MS9540 MS5145 (Any other model ,please contact me to confirm)
| Product Type: | Honeywell usb cable with chip |
| Product Name: | 2M Honeywell Metrologic KB Wedge Scanner PS2 to USB port scanner cable with chip |
| Connector on First End: |
1 x 4-pin Type A USB with Chip |
| Connector on othe End: | RJ48 10P10C ,50μ,Gold plated |
| Cable Length: | 2M , Other length 2m ,5m and coiled cable are all avaliable |
| Conductor: | Copper |
| Color: |
Black |
| Original P/N | No |
| Warranty: | 12 Months |
3. Electrical Test
1. Hi-Pot Test: DC300V.
2. Insulation Resistance: 5M Ohms (Min).
3. Contactor Resistance: 1 Ohms (Max).
4. 100% Open Short and Miss Wire Test.
4. Related Honeywell barcode scanner cable
----Honeywell cable with chip
Honeywell 1900 Serial Honeywell metrologic serials Honeywell IT3800 Serials
--- Other Honeywell cable
| Honeywell Metrologic | 2M ,3M ,5M or Custom | Coiled or straight |
----USB RS232 PS2 Port : MS7120,MS5145,MS1690,MS9540,MK7120,MS1633, --- KBW TO USB WITH CHIP RS232 TO USB WITH CHIP MS7120 MS1690 MS9540 MS5145V |
| Honeywell HHP 3800 |
--- USB Cable 3200,3800g,3800r,3820,4206,4236,4600g,4600r, --- RS232 Cable 3200,3800g,3800r,3820,4206,4236, --- PS2 Cable IT3800,4800i,4410HD,4600g --- KBW PS2 to usb with chip cable IT3800LTP IT3800LR,4410HD |
||
| Honeywell 3310G |
---USB ,PS2 ,RS232 Port cable 3310G ,MS4980 |
||
| Honeywell HHP1900 |
---USB ,RS232 ,PS2 Scanner cable 1200G/1202G/1250G/1250GAP/1300G/1400G/1500G/1900GHD/1900GSR/1902GHD/1902GSR/7580/1910I/3310G/1450G ---KBW PS2 to USB CABLE WITH CHIP 1900GSR-2-COL |
||
|
Honeywell YJ USB Cable |
YJ4600 |
